What Is a Carbon Fiber Electric Bike?
A carbon fiber e-bike, also known as a carbon fiber e-bike or carbon fiber electric bicycle, is a lightweight, high-performance e-mobility solution that combines the strength of carbon fiber with the power of an integrated electric motor. Built for speed, agility, and endurance, this advanced bicycle uses a carbon fiber frame to reduce overall weight while maintaining exceptional stiffness and vibration dampening, ideal for long-distance road riding.
Our Carbon Fiber Electric Bike Models

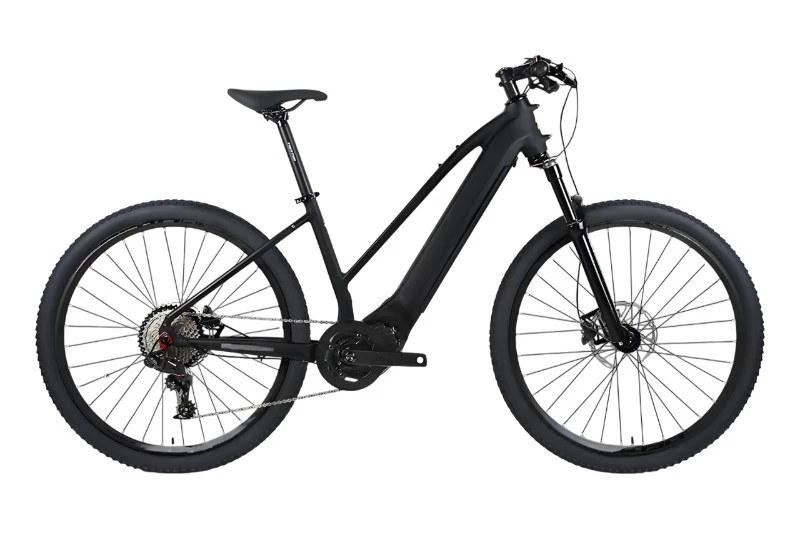

Carbon Fiber Electric Bike
•Model: MYC02EC1-ELECTRIC
•Frame Size: 27.5×16"
•Bike Color: MatteBlack / MatteDarkGray
•Net Weight: 22.2 kg
•Frame: Alu alloy AL6061,Flat weld&Smooth,Inner cables
•Handelbar Sets: RS, Alu alloy, Matte, Handlebar 31.8×720, Stem 80, Seat post 31.6×350mm, Clamps 34.9mm QR
•Fork: RS, MgAl alloy, Air suspension, Remote
•Head Sets: Alu alloy CNC with sealed Bearings 52*52mm
•Derailleur Lever: SRAM NX-11S
•Rear Derailleur: SRAM NX-11S
•Cassettes: SUNSHINE-11S,11-42T
•Chain: SUMC-11S
•Brake: TEKTRO-M275 hydraulic disc brake,180/180mm
•Hub: RS Alu alloy,4-sealed Bearings, Slotted, Disc,32Holes
•Rim: RS Alu alloy with Double-wall&Rivets, W25×H21mm
•Tire: MAXXIS, 27.5×2.25"
•Motor System: Bafang Mid, M510, 36V250W (48V250W)
•Max Torque: 95 N.m (Peak 130N.m)
•Pedal Sensor: Torque+Speed(cadence)
•Battery: Samsung 21700 Li-ion, 720Wh
•Waterproof: IP X6
Send Inquiry Now
Why Is Carbon Fiber Suitable for E-bikes?
Controllable layup structure
Carbon fiber frames are manufactured through a layer-by-layer layup process. Fiber orientation and thickness can be adjusted in different areas such as the head tube, bottom bracket, motor mount, and rear triangle. This allows engineers to increase stiffness precisely where torque loads are highest, while keeping other sections lightweight and compliant for better ride comfort.
Outstanding strength-to-weight ratio
Electric bicycles carry additional weight from motors and batteries. Carbon fiber frames can deliver higher structural strength at a lower mass than aluminum or steel, effectively offsetting this added weight and improving overall balance and handling.
Natural vibration damping
E-bikes are often used for longer rides or on mixed terrain. Carbon fiber naturally absorbs road vibrations, allowing riders to enjoy a smoother and quieter ride without relying entirely on suspension systems, which helps reduce fatigue over time.
Integrated motor and battery design
Carbon fiber enables complex, seamless shapes. Motors, battery housings, and cable routing can be fully integrated into the frame, enhancing stiffness, protection, aerodynamics, and overall visual cleanliness.
Manufacturing Process & Technical Expertise
Built On Deep Carbon Fiber Manufacturing Experience
CarbonWorld has spent many years focused on carbon fiber applications for high-performance bicycle components and industrial composites. In e-bikes, the added torque and higher system weight place greater demands on carbon laminates. Our design decisions start with load paths, battery integration, and long-term fatigue performance, rather than treating an e-bike frame as a standard frame with a motor added.
Traceable In-house Processes：
*Key production steps are completed internally, ensuring quality is not diluted by changing suppliers:
*Carbon lay-up planning with reinforcement in high-stress areas such as the bottom bracket, head tube, motor mounts, and battery compartment
*Controlled molding processes to maintain consistent wall thickness and reduce the risk of internal voids
*Post-processing and alignment inspections to ensure precise fit and reliable integration of motor systems and hardware
*Quality control focused on real-world failure points
Oem / Odm Support For Brands And Manufacturers
Whether you need a private-label carbon fiber e-bike, a frame-only program, or custom geometry, we support OEM/ODM projects through specification confirmation, sampling, and scalable production. Share your intended use case, motor and battery system, and key dimensions—we’ll help develop a solution that performs reliably and manufactures efficiently.
Why Choose a Carbon Fiber Ebike over Alloy Models?
|
Feature |
Carbon Electric Bike |
Alloy Electric Bike |
Benefit Summary |
|
Weight |
Ultra-lightweight, optimized frame design |
Heavier due to material density |
Carbon frames reduce bike weight, improving speed and battery efficiency. |
|
Strength-to-Weight Ratio |
High stiffness with excellent strength |
Lower stiffness, prone to flex under stress |
Better power transfer and responsive ride with carbon fiber. |
|
Vibration Absorption |
Natural damping reduces road vibrations |
Less vibration damping, rougher ride |
Carbon frames offer smoother, more comfortable rides, especially on long distances. |
|
Design Flexibility |
Allows complex tube shapes and integrated cables |
Limited shaping, external cable routing |
Sleeker, more aerodynamic designs are possible with carbon fiber. |
|
Durability & Fatigue Resistance |
Resistant to fatigue with proper care |
Susceptible to metal fatigue over time |
Carbon frames maintain structural integrity longer under stress cycles. |
|
Cost |
Higher upfront cost due to advanced materials |
Generally lower cost, mass-produced |
Carbon is an investment in performance and ride quality. |
|
Repairability |
Requires specialized repair methods |
Easier and cheaper to repair |
Alloy is easier to fix, but carbon repairs restore frame strength more reliably. |
|
Aesthetic Appeal |
Sleek, modern look with customizable finishes |
More conventional appearance |
Carbon bikes are often preferred for premium aesthetics. |
Carbon E-Bike Test Report
Rim UCI Impact Test Report
Certified under UCI standards, our rims withstand impact without cracks or structural failure, ensuring global race compliance.
Walking Fatigue Test Report
Simulated 100,000 riding cycles confirm exceptional fatigue resistance and long-lasting durability.
Rim Spoke Tension Test Report
Balanced spoke tension across all positions secures stable performance under extreme riding forces.
Rim Positive Rigidity Test Report
High stiffness values guarantee efficient power transfer and responsive handling.
Application Scenarios for Carbon Fiber E-Bike
Long-Distance Road Riding with Electric Efficiency
For endurance cyclists and long-distance commuters, full carbon e bike offer the best of both worlds: lightweight handling and sustained electric assistance. Riders can maintain high speeds with less fatigue, making them ideal for 50–150km routes, cross-city commutes, or even multiday touring.
Premium Urban Commuting for Professionals
Carbon fiber electric bikes are increasingly popular among city professionals who seek a faster, sweat-free, and stylish way to move through traffic. The lightweight carbon frame ensures easy maneuvering in dense urban zones, while integrated battery systems maintain a clean aesthetic fit for executive use.
Fitness Training with Intelligent Power Support
Many athletes use a carbon e bike fully for controlled power-zone training. The electric assist can be dialed in to help maintain cadence without overexertion, especially during recovery rides or hill intervals. Riders enjoy the feel of a performance road bike with the added benefit of motorized pacing.
Eco-Friendly Transport for Urban Last-Mile Delivery
In dense cities where traditional delivery vehicles struggle, carbon fiber electric bikes provide a sustainable and efficient alternative. Their lightweight structure allows for longer range per charge and faster acceleration-ideal for courier services, food delivery, or small-parcel transport.
How to Maintain a Carbon E-Bike
Frame Inspection & Protection
Carbon fiber is incredibly strong, but it's not immune to damage from sharp impacts or stress concentrations.
Inspect the frame regularly for cracks, especially around joints and the bottom bracket.
Avoid over-tightening bolts-use a torque wrench to stay within recommended limits.
Apply frame protection film to high-wear areas to prevent scratches during transport or use.
Clean the Bike with Care
Avoid using pressure washers, as they can damage seals and electronics.
Use a soft brush and mild detergent to clean the carbon frame.
Keep water away from the motor, controller, and charging ports.
Wipe down electrical connectors after wet rides to prevent corrosion.
Battery Health Management
The lithium battery is the power core of your e-bike. To extend its life:
Charge between 20% and 90%-avoid full discharges.
Store the bike indoors at moderate temperatures, ideally 10°C–25°C.
Disconnect the battery during long-term storage or transportation.
Clean charging ports regularly and avoid moisture intrusion.
Motor and Controller Checks
The motor should run smoothly and quietly under normal load.
If noises arise or power output drops, inspect firmware, wiring, or seek OEM diagnostics.
Don't open sealed motor units without professional support.
Drivetrain & Brake Maintenance
Since carbon fiber e-bikes are often ridden faster and longer, the drivetrain wears faster, too.
Clean and lubricate the chain frequently.
Replace cassettes, chains, and pads at recommended intervals.
Adjust hydraulic or mechanical brakes to compensate for increased stopping force from higher average speeds.
Why Do Customers Choose Carbon World?
FAQ
Q. What makes carbon fiber frames better suited for electric bikes compared to other materials?
A: Carbon fiber offers an exceptional strength-to-weight ratio, allowing electric bikes to be lighter without sacrificing durability. This improves battery efficiency and handling, crucial for e-bikes that carry additional motor and battery weight.
Q. How does the carbon fiber frame affect the electric bike's battery life?
A: A lighter frame reduces overall weight, which means the motor uses less power to propel the bike. This improved efficiency typically results in longer battery range per charge compared to heavier alloy frames.
Q. How do I know if a carbon fiber electric bike frame is of high quality?
A: High-quality carbon frames show smooth, consistent surface finishes without visible flaws or resin bubbles. They also come with certifications like CE or ISO and pass strict quality tests, including impact resistance and fatigue cycles.
Q. What is the expected lifespan of a carbon fiber electric bike frame?
A: With proper care and maintenance, carbon fiber frames can last 10 years or more. They resist fatigue and environmental damage better than many metals but require regular inspection to ensure ongoing safety.
Q. What's the difference between a carbon fiber e-bike and a carbon fiber regular bike?
A: While both use lightweight carbon frames, carbon e-bikes are reinforced to handle extra stress from the motor and battery. The bottom bracket, downtube, and chainstay areas are usually structurally enhanced for electric drive integration.
Q. Can I install racks or accessories on a carbon electric bike?
A: Yes, but it must be done with care. Many carbon e-bike frames include integrated mounting points. Over-tightening clamps or drilling into the frame is not recommended; only designated mounts and torque specifications.
Q: Can I customize the frame geometry for OEM carbon electric bikes?
A: Yes. Carbon World offers OEM and ODM services for carbon electric mountain bikes, carbon e-road bikes, and carbon electric gravel bikes. Customization options include geometry, motor integration, battery size, paint finish, and branding, allowing brands and distributors to tailor their products for target markets.
